Dumpers

Through our partnership with Thwaites Dumpers, Lloyd Ltd offers a full range of dumpers from 1-tonne to 10-tonne Straight Tip or Swivel Tip Dumpers.

The range includes:

  • 1-tonne Hi-Tip Dumper
  • 3-tonne Front Tip Dumper
  • 6-tonne Power Swivel Dumper
  • 9-tonne Power Swivel Dumper

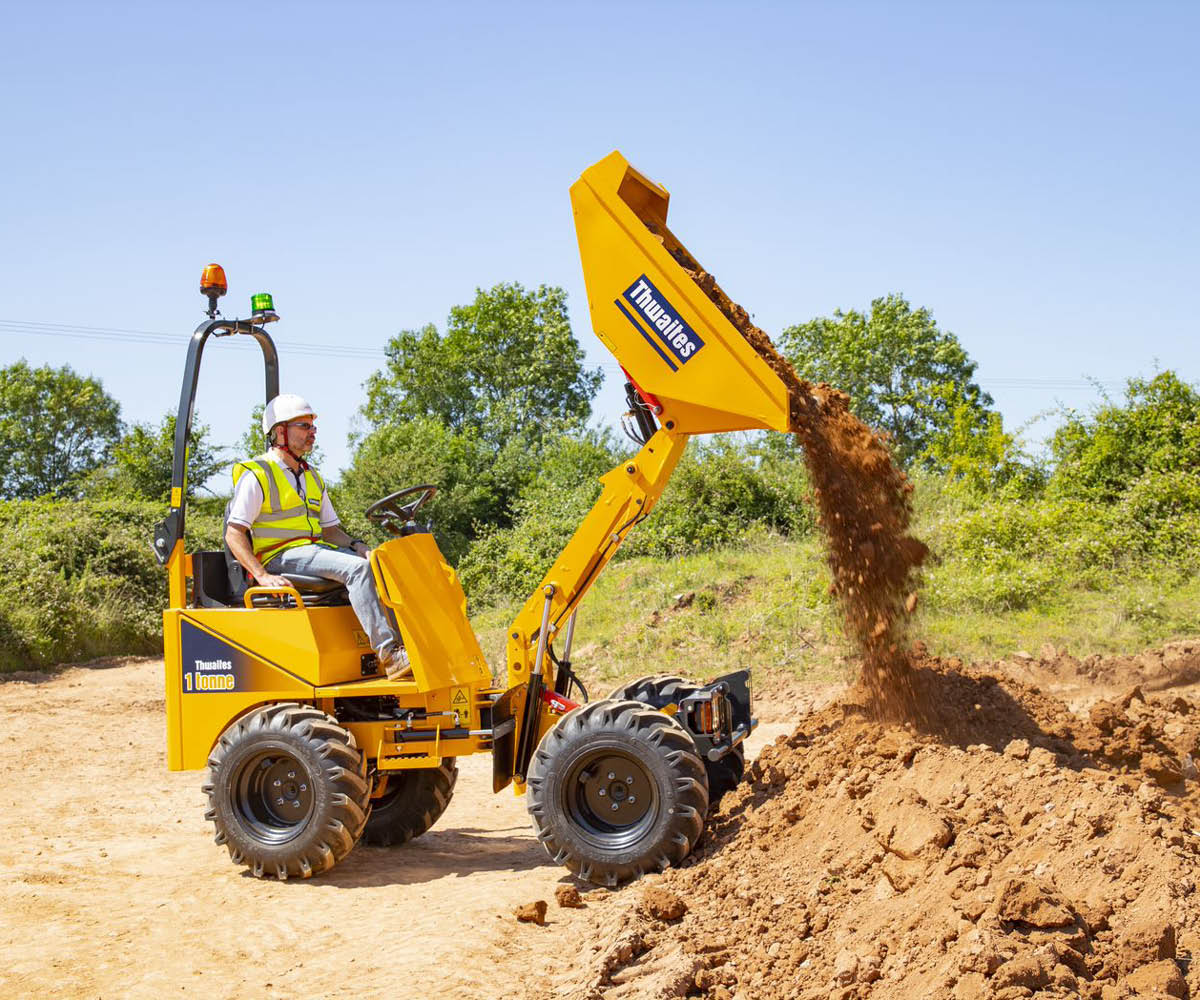

1-Tonne Hi-Tip Dumpers

Engine: Yanmar 3TNV76, 15.9kW/21.4 bhp (nett) @ 2800 rpm, 3-cylinder water-cooled diesel. Max torque 66.4 Nm (49 lb f ft). Electric starting, hour meter, battery isolator switch and heavy-duty cyclonic air cleaner positioned within the lockable engine compartment.

Drive System: Hydrostatic with variable displacement pump feeding four wheel motors, incorporating “Twin-Lock” system to maximise traction.

Skip: Hydraulically operated, 3mm base, 4mm sides steel plate. Mouth reinforced with box sections giving greater strength to minimise damage, no material traps. Raise and tip control operated by twin control levers.

Seating & Controls: Column-mounted forward/reverse lever with foot pedal speed control. Adjustable suspension seat, accessible from both sides. Audible warning device at key start ‘on’ position. Super-bright warning lights for all critical functions. Electric horn.

Click to read the Thwaites 1-Tonne Hi-Tip Dumper Brochure.

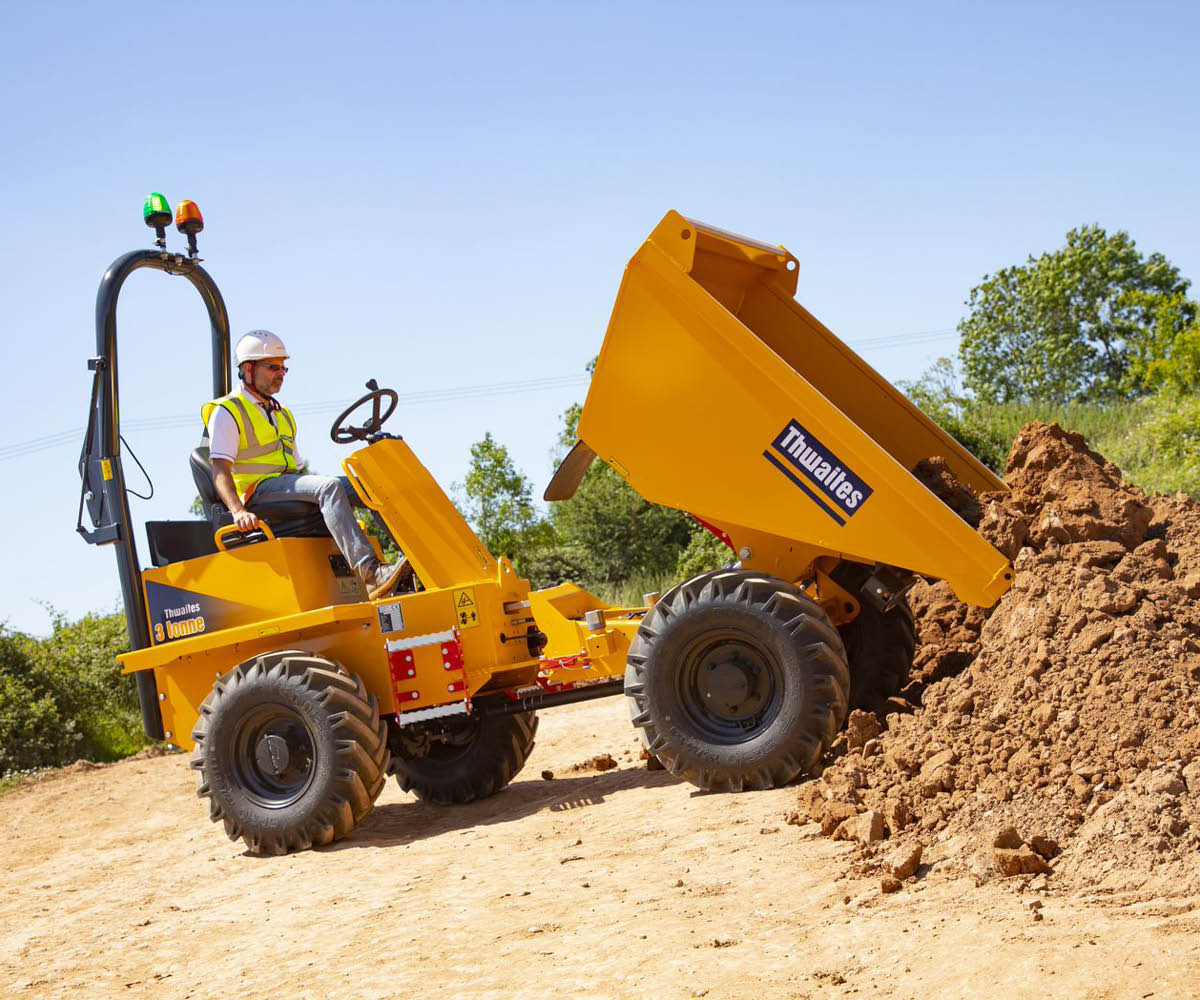

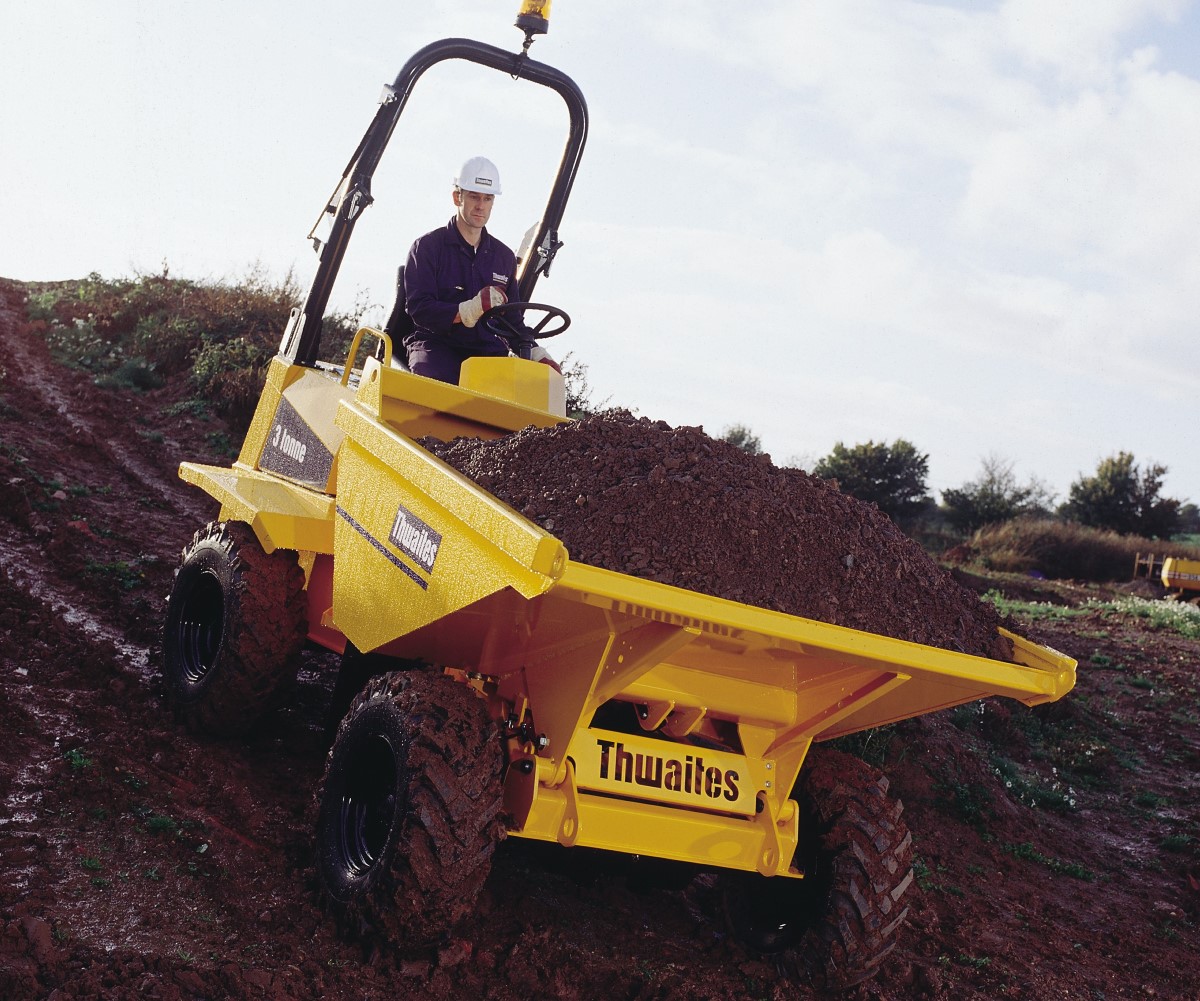

3-Tonne Front Tip Dumpers

Engine: Yanmar 3TNV88, 24.8 kW/33.2 bhp (nett) at 2800 rpm, 3-cylinder water-cooled direct-injection diesel. Max torque 111 Nm (82 lbf ft). Electric starting, hour meter, battery isolator switch and heavy-duty cyclonic air cleaner positioned within the lockable engine compartment.

Transmission: Hydrostatic with high/low speed range and forward/reverse direction controlled by one column-mounted lever. Inching facility for precise manoeuvres in restricted areas activated by first push on brake pedal.

Skip: Hydraulically operated, 6mm steel base plate, fully welded, mouth and sides of skip reinforced with box sections giving greater strength to minimise skip damage. No material traps. Powerswivel mounted on ball bearing turntable with powered rotation through 180° by means of twin slewing cylinders, operated by a single dual-axis control lever. Automatic safety lock holds skip in central position when travelling.

Seating & Controls: Adjustable suspension seat, accessible from both sides. Super-bright warning lights for all critical functions. Electric horn. Large pedal pads with handbrake and hydraulic controls ready to hand.

Click to read the Thwaites 3-Tonne Front Tip Dumper Brochure.

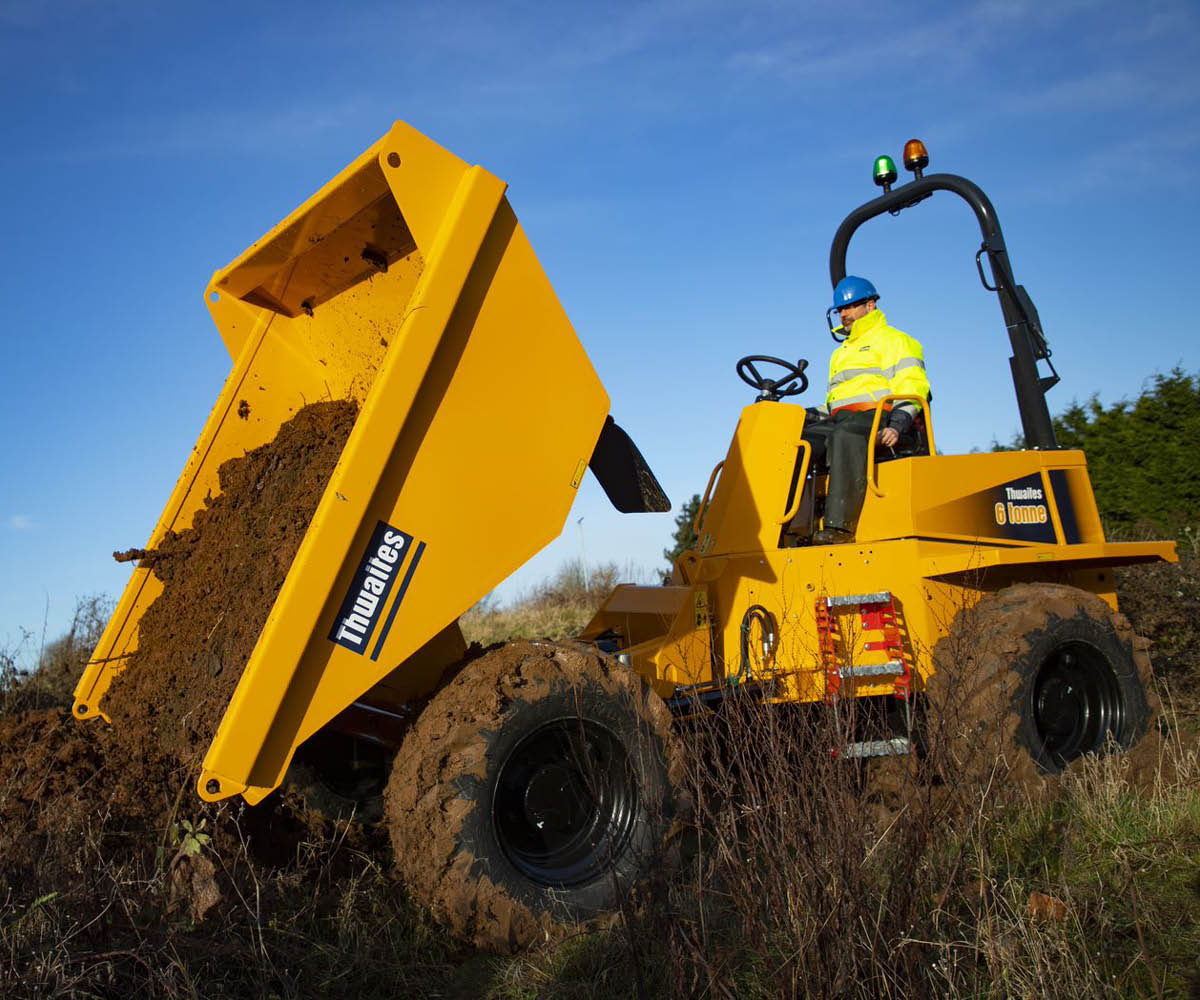

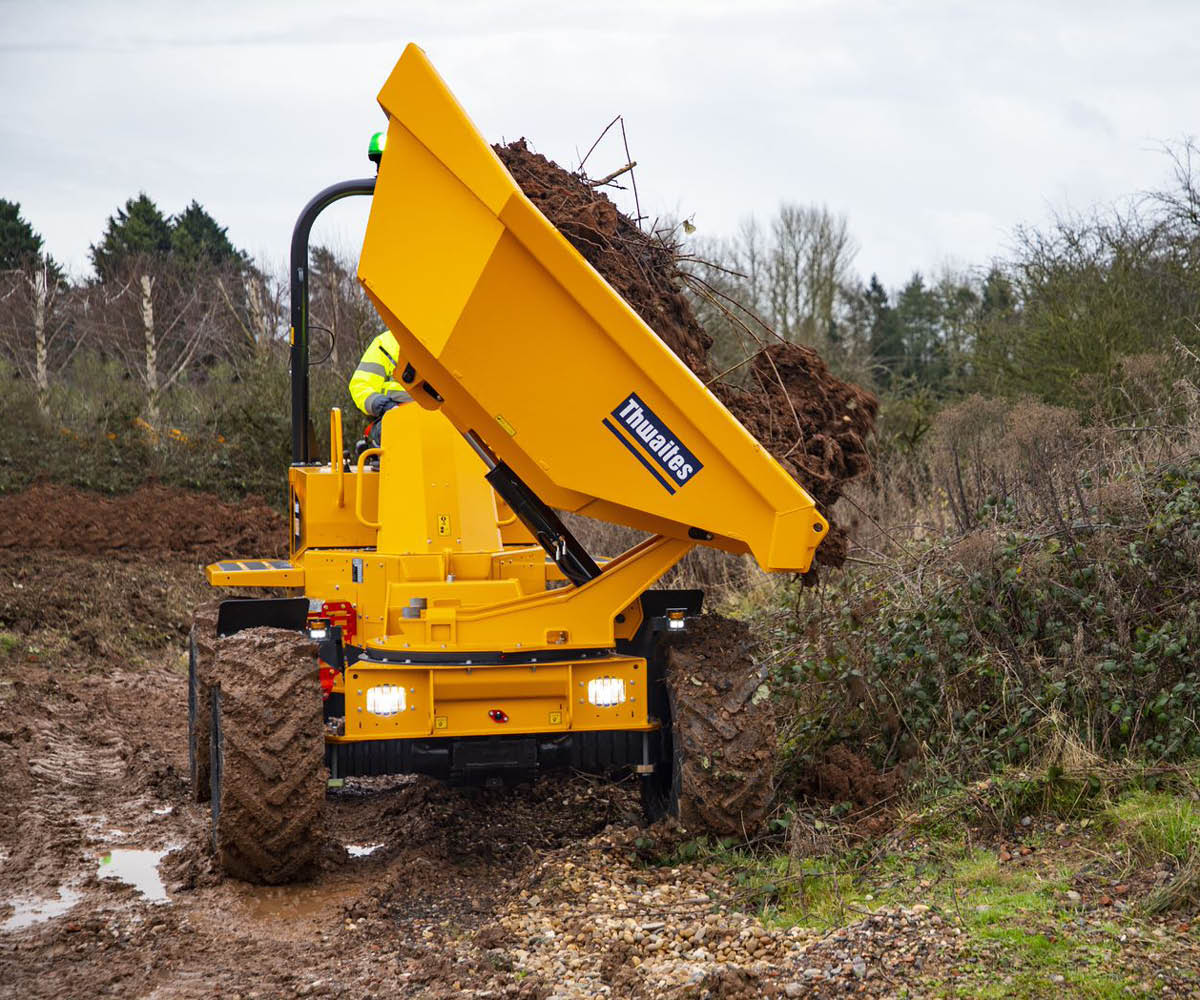

6-Tonne Power Swivel Dumpers

Engine: Deutz TD 3.6 L4 55.4kW/74 hp at 2200 rpm, water-cooled, 4-cylinder, charged air-cooled turbo, electronic controlled fuel-injected diesel engine. Powercore air intake filter and stainless steel exhaust system, including after-treatment Diesel Oxidisation Catalyst providing conformity to EU Stage IIIB emission regulations. Peak torque 330 Nm at 1600 rpm.

Drive System: Torque converter four-speed forward and reverse Powershuttle transmission with column-mounted directional control lever and heavy-duty gear-driven transfer box.

Skip: Hydraulically operated, 6mm steel base plate, fully welded, mouth and sides of skip reinforced with box sections giving greater strength to minimise skip damage. No material traps.

Seating & Controls: Adjustable suspension seat, fitted with high-visibility rigid seat belt with adjustable web, accessible from both sides. Audible warning device for handbrake in “on” position, electric horn, large pedal pads, ignition key, park brake and skip controls ready to hand. Super-bright LED warning lights.

Click to read the:

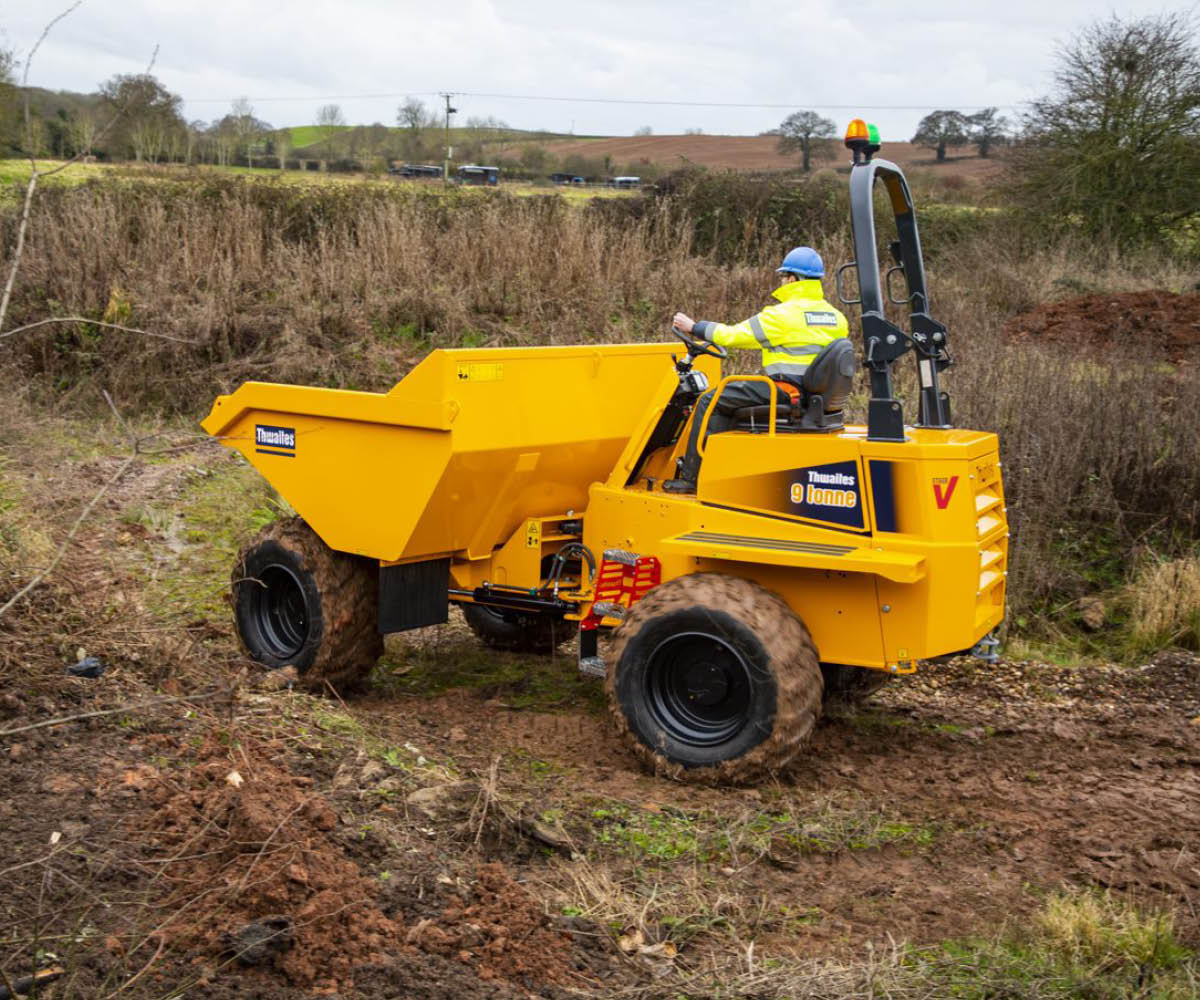

9-Tonne Power Swivel Dumpers

Engine: Deutz TCD 3.6 L4 55.4 kW/74 hp at 2200 rpm, water-cooled, 4-cylinder, charged air-cooled turbo, electronic controlled fuel-injected diesel engine. Powercore air intake filter and stainless steel exhaust system, including after-treatment Diesel Oxidisation Catalyst providing conformity to EU Stage IIIB emission regulations. Peak torque 390 Nm at 1300 rpm.

Drive System: Torque converter four-speed forward and reverse Powershuttle transmission with column-mounted directional control lever and heavy-duty gear-driven transfer box.

Skip: Hydraulically operated, 8 mm steel base plate, fully welded, reinforced with box section giving greater strength to minimise skip damage. No material traps. Powerswivel mounted on a ball bearing turntable with powered rotation through 180° by means of twin slewing cylinders, operated by a single dual-axis control lever. Automatic safety lock holds skip in central position when travelling.

Seating & Controls: Adjustable suspension seat, fitted with high-visibility rigid seat belt with adjustable web, accessible from both sides.

Click to read the:



For more information

Contact your local Lloyd Ltd branch to learn more about our dumper range or to book a demo.
