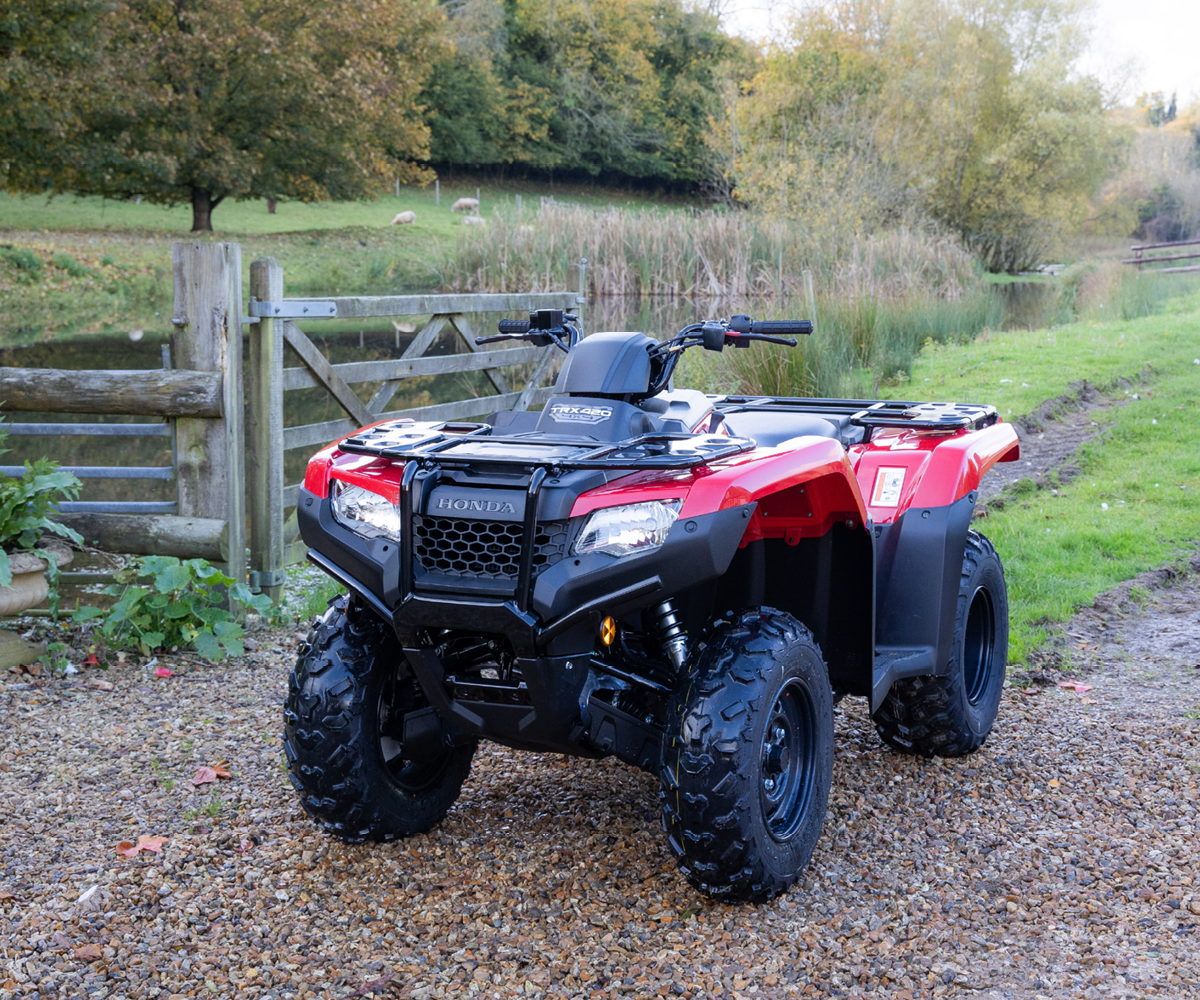

Honda TRX420 Fourtrax

At Lloyd Ltd branches at Bishop Auckland, Carlisle, Dumfries, Kelso and Penrith, we are specialists in Honda ATVs for both sales and aftersales. We are proud to represent Honda whose range of ATVs and reputation for engineering excellence and reliability are second to none.

The Honda TRX420 Fourtrax is the ideal mid-size all-rounder, offering class-leading power, performance and efficiency.

Key features:

420cc liquid-cooled engine
Choice of Manual, Auto or ESP transmission
Available with or without Power Steering
Available with swing-arm rear suspension or independent rear suspension
385kg towing capacity
Wider front driveshaft guards
Comes with 2-year warranty

Available in five model variants:

TRX420FA6-20: TRX420 4×4 AT IRS EPS – 5fwd/1rev automatic and electric shift (ESP).
TRX420FA2-20: TRX420 4×4 AT EPS – 5fwd/1rev automatic and electric shift (ESP).
TRX420FM2-20: TRX420 4×4 ES – 5fwd/1rev manual foot-shift.
TRX420FE1-20: TRX420 4×4 ES – 5fwd/1rev automatic and electric shift (ESP).
TRX420FM1-20: TRX420 4×4 – 5fwd/1rev manual foot-shift.

Contact your local branch to arrange your demonstration.

All Honda ATVs come with an industry-leading 2-year manufacturer’s warranty as we know reliability is essential.

Click to read the Honda ATV & UTV Brochure.

Honda TRX420 Fourtrax

Honda’s Fourtrax 420 is the UK’s best-selling ATV. Engineered for agility and built to tow with confidence, the Fourtrax 4WD models are designed to conquer the toughest conditions with ease.

At its heart lies a 420cc fuel-injected, liquid-cooled, longitudinally mounted engine – delivering the perfect balance of performance and fuel economy.

Optimised using advanced Computer-Aided Design (CAD), the Fourtrax offers class-leading handling and all-day comfort, making even the hardest jobs smoother and more enjoyable.

With rugged utility styling and a durable double-cradle chassis, it’s built to handle whatever the day throws at it. The multi-function LCD display keeps key information in clear view, while the adjustable pre-load front and rear suspension let you fine-tune your ride to suit any terrain or task.

Key specification features:

• Forward/Reverse Skip Switch (DCT & ES): Bypass neutral when reversing
• Sturdy front and rear racks: Providing a better surface area
• 1.9L water resistant utility box: Providing useful storage
• Protecting guards: For the lower suspension arms & driveshafts

Featured Honda technologies:

TRAXLOK™
MANUAL TRANSMISSION (MT)
Traxlok® allows you to quickly switch between the ‘go-anywhere’ traction of 4wd and the increased manoeuvrability and lighter steering of 2wd.
Manual 5-speed transmission with automatic clutch and low-rpm engagement point for excellent control and towing capability.
AP SURETRAC™
POWER STEERING (PS)
AP Suretrac™ torque-sensitive limited-slip differential for extra grip in slippery conditions.
Greatly reduces steering effort and kickback through the handlebar.
IRS SUSPENSION
.
Independent Rear Suspension (IRS) for improved comfort, traction and load handling capability.

FOURTRAX 420
TRX420FM1* / TRX420FE1 (ES) / TRX420FM2*

Utility Work ATV	4WD (Also available in Green*)
Engine Size	420 cc
Engine Type	Liquid-cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder
Bore × Stroke	86.5 mm × 71.5 mm
Fuel System	PGM-FI, 34 mm throttle-body fuel-injection system
Ignition	Full-transistorised type with electronic advance
Starter	Electric / Recoil
Gears	Five forward gears plus reverse
Transmission	Auto clutch with manual FE1: electric shift
Drive	4wd Direct drive-shafts with TraxLok® switchable 2wd/4wd and locking front differential
Power Steering	TRX420FM2
Front Suspension	Independent double wishbone
Rear Suspension	Swingarm with single shock
Adjustable Pre-load	Front and Rear suspension
Suspension Travel	Front: 170 mm Rear: 170 mm
Front Brakes	190 mm dual hydraulic discs
Rear Brake	160 mm sealed mechanical drum
Tyres	Front: 24 × 8-12 Rear: 24 × 10-11
Dimensions	L: 2103 mm W: 1204 mm H: 1176 mm FE1: L: 2103 mm W: 1204 mm H: 1174 mm
Wheelbase	1270 mm
Seat Height	855 mm
Ground Clearance	183 mm
Min. Turning Radius	2.8 m
Fuel Capacity	14.7 L, incl. 4.9 L reserve
Rack Capacity	Front: 29.9 kg / Rear: 60 kg FE1: 60.3 kg
Towing capacity	384 kg
Dry weight	FM1: 267 kg FE1: 269 kg FM2: 273 kg
Colours	Red / Green*

HONDA FOURTRAX 420 DCT

The advanced mid-size ATV, for riders who demand simplicity, strength, and performance, the Fourtrax DCT 4WD sets the benchmark. Its automatic Dual Clutch Transmission (DCT) delivers smoother shifting and greater fuel efficiency – making every ride both effortless and rewarding.

At its core is a powerful yet efficient 420 cc fuel-injected, liquid-cooled OHV engine that delivers strong, responsive performance with excellent economy and easy starts in any weather. Designed with rider-focused technology, the Fourtrax 420 DCT provides exceptional handling, durability, and comfort across even the most challenging terrain.

Honda’s proven Dual Clutch Transmission – refined over years of success in our leading motorcycles– lets you choose between smooth automatic shifting or manual control via Electric Shift Program (ESP) at the touch of a button.

With an axle-mounted heavy-duty trailer hitch and a 384 kg towing capacity, the Fourtrax 420 DCT is built to work hard– and ride even harder.

Key specification features:

• Forward/Reverse Skip Switch (DCT & ES):
Bypass neutral when reversing
• 1.9L water resistant utility box: Providing useful storage
• Enhanced shift map: Monitors RPM in real time shifting
• Manual override: Override for added control
• Protecting guards: For the lower suspension arms & driveshafts

Featured Honda technologies:

TRAXLOK™
TRANSMISSION
Traxlok® allows you to quickly switch between the ‘go-anywhere’ traction of 4wd and the increased manoeuvrability and lighter steering of 2wd.
Choose between push button ESP or our unique five-speed Dual Clutch auto-transmission for seamless acceleration over any terrain.
AP SURETRAC™
POWER STEERING (PS)
AP Suretrac™ torque-sensitive limited-slip differential for extra grip in slippery conditions.
Greatly reduces steering effort and kickback through the handlebar.
IRS SUSPENSION
.
Independent Rear Suspension (IRS) for improved comfort, traction and load handling capability.

FOURTRAX 420 DCT PS
TRX420FA2 / TRX420FA6

Utility Work ATV	4WD
Engine Size	420 cc
Engine Type	Liquid-cooled, wet-sump, longitudinally mounted OHV 4-stroke single cylinder
Bore × Stroke	86.5 mm × 71.5 mm
Fuel System	PGM-FI, 34 mm throttle-body fuel-injection system
Ignition	Full-transistorised type with electronic advance
Starter	Electric / Recoil
Gears	Five forward gears plus reverse
Transmission	Automatic Dual Clutch Transmission (DCT) with auto-shifting or electric shift
Drive	4wd Direct drive-shafts with TraxLok® switchable 2wd/4wd and locking front differential
Power Steering	Power Steering
Front Suspension	Independent double wishbone
Rear Suspension	FA2: Swingarm with single shock FA6: Dual A-Arm (IRS)
Adjustable Pre-load	Front and Rear suspension
Suspension Travel	FA2: Front: 170 mm Rear: 170 mm FA6: Front: 185 mm Rear: 215 mm
Front Brakes	190 mm dual hydraulic discs
Rear Brake	FA2: 160 mm sealed mechanical drum FA6: 170 mm single hydraulic disc
Tyres	Front: 24 × 8-12 Rear: 24 × 10-11
Dimensions	FA2: L: 2103 mm W: 1204 mm H: 1176 mm FA6: L: 2146 mm W: 1204 mm H: 1203 mm
Wheelbase	FA2: 1270 mm FA6: 1295 mm
Seat Height	FA2: 855 mm FA6: 901 mm
Ground Clearance	FA2: 183 mm FA6: 246 mm
Min. Turning Radius	FA2: 2.8 m FA6: 3.5 m
Fuel Capacity	14.7 L, incl. 4.9 L reserve
Bed Capacity	Front: 29.9 kg / Rear: 60 kg
Towing capacity	384 kg
Dry weight	FA2: 291 kg FA6: 300 kg
Colours	Red
