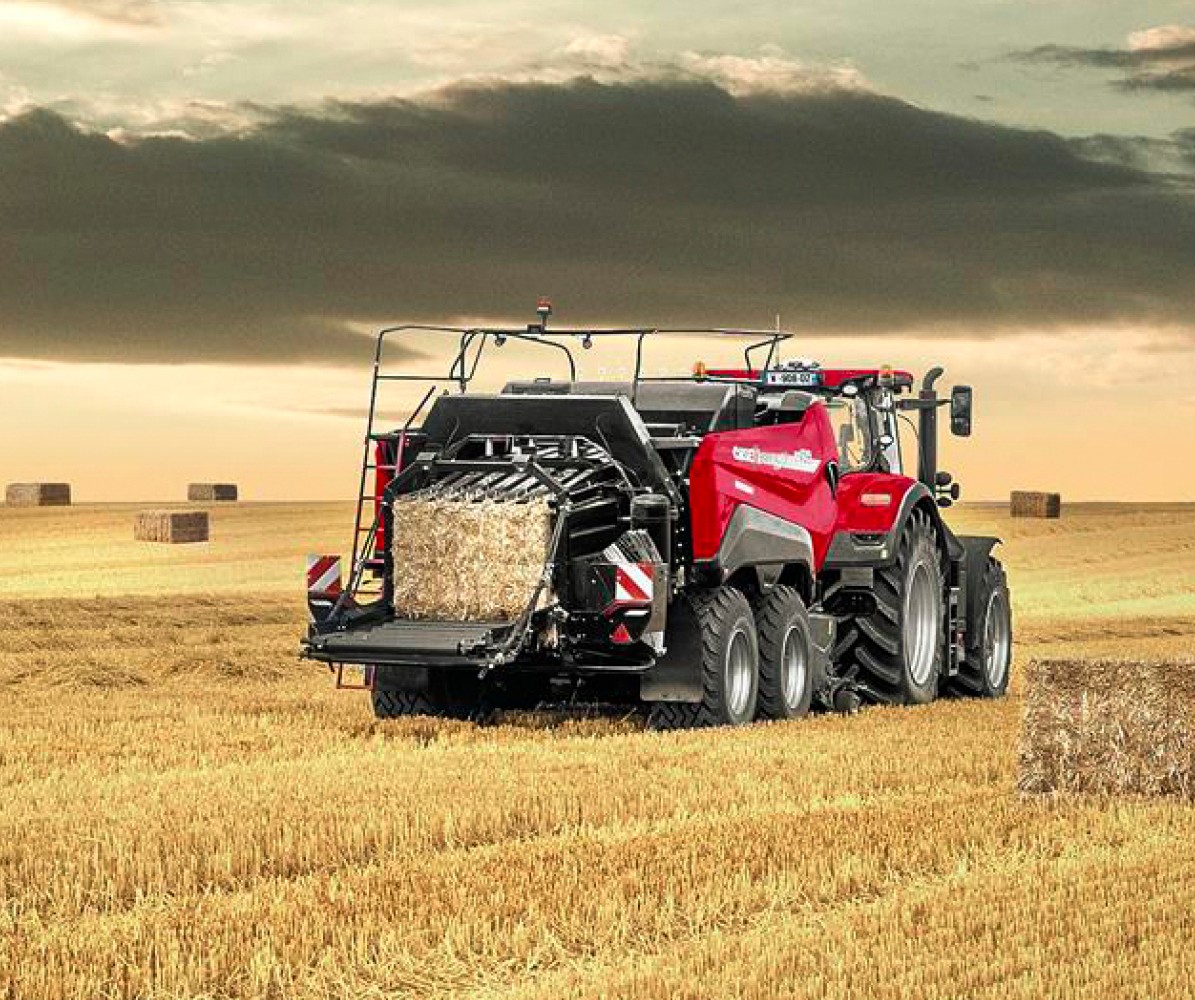

Make the most of baling windows and build better, high-density bales with the Case IH LB436 HD Large Square Baler.
Available in two models, Rotor Cutter or Packer Feeder version, the ambitious goal was 22% greater bale density while maintaining throughput as compared to standard conventional balers.
Models available:
- Rotor Cutter
- Packer Feeder
| BALE DIMENSIONS | MAXIMUM LENGTH | MINIMUM PTO POWER | PICK-UP WIDTH |
| 120 x 90 cm | 300 cm | 230 HP | 2.352 M |
Click here to read the Case IH LB436 HD Large Square Baler brochure.
Capacity and density are at the heart of the LB436 HD development.
Numerous new features such as a patented two-speed gearbox, revised plungers, TwinePro twin-knot technology as standard, or a hydraulically suspended, steered tandem chassis all increase the efficiency of the baler and set standards in bale density and ground speed.
CAPACITY: the new LB436 HD baler provides high performance baling with more than 40 tons per hour.
DENSITY: designed with a new plunger and bale chamber for 500 kg per bale in all crops.
EASE OF USE: for professional producers and contractors who ask for premium comfort and advanced technology.
LB436 HD
| BALE SIZE (WIDTH x HEIGHT) | 120 x 90 cm | PICK-UP WIDTH | 2,350 mm |
| FEEDER | Packer / Rotor Cutter (29 knives) | NUMBER OF KNOTTERS | 6 |
| DENSITY LEVEL / NUMBER OF CYLINDERS | High Density / 7 | LENGTH OF BALE CHAMBER | 4,050 mm |
| TRACTOR PTO POWER REQUIREMENT (1) | 230 hp / 250 hp | (1) Depending on rotor type | |

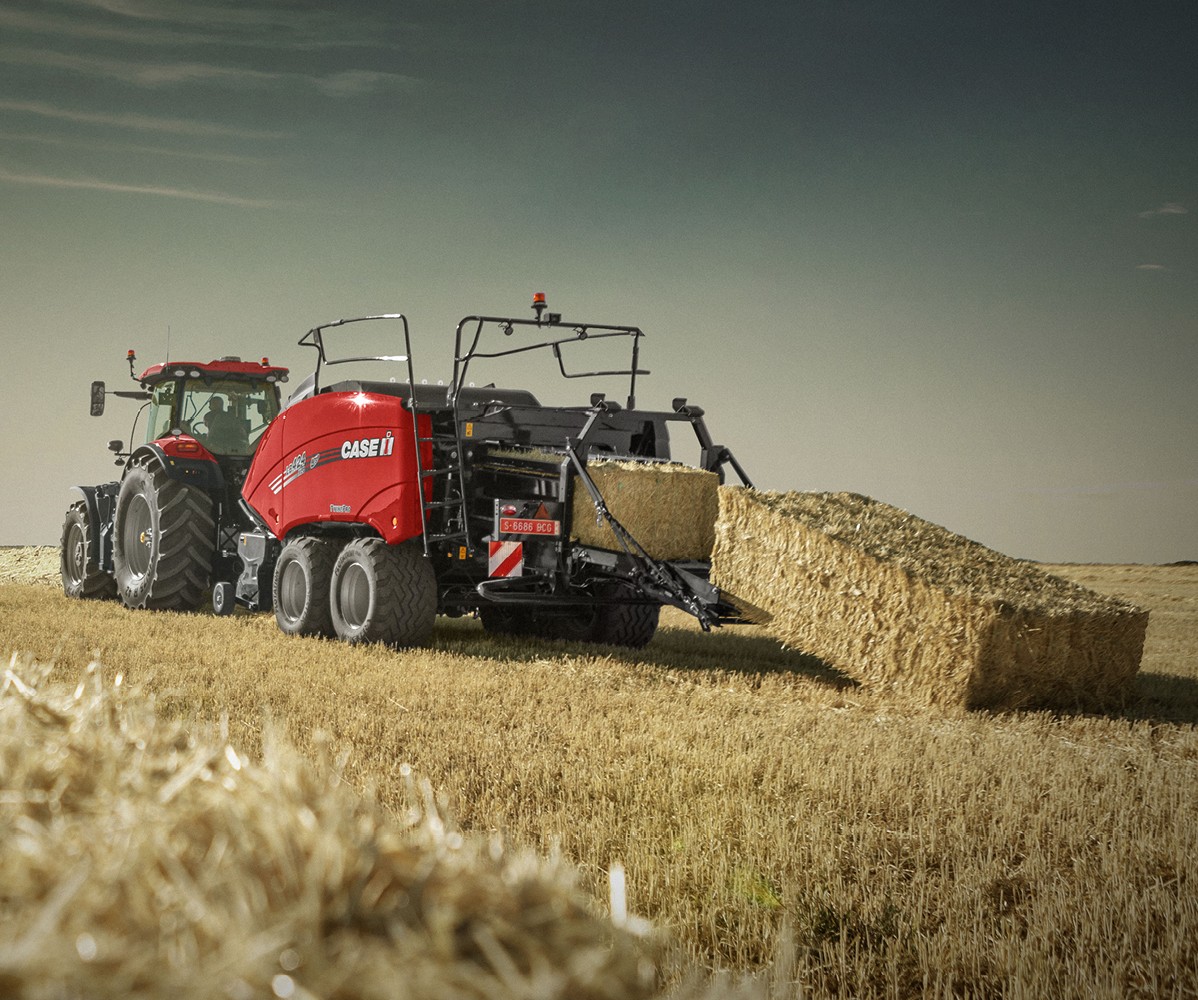

LB424 XLD
| BALE SIZE (WIDTH x HEIGHT) | 120 x 70 cm | PICK-UP WIDTH | 2,350 mm |
| FEEDER | Rotor Cutter | NUMBER OF KNOTTERS | 6 |
| DENSITY LEVEL / NUMBER OF CYLINDERS | Extra Density / 2 | LENGTH OF BALE CHAMBER | 3,340 mm |
| TRACTOR PTO POWER REQUIREMENT (1) | 170 hp | (1) Depending on rotor type | |
LB424 / 434 XL
| BALE SIZE (WIDTH x HEIGHT) | 120 x 70 cm or 120 x 90 cm | PICK-UP WIDTH | 2,230 mm / 2,350 mm |
| FEEDER | Packer / Rotor Cutter (15 or 29 knives) | NUMBER OF KNOTTERS | 6 |
| DENSITY LEVEL / NUMBER OF CYLINDERS | Standard / 2 | LENGTH OF BALE CHAMBER | 3,340 mm |
| TRACTOR PTO POWER REQUIREMENT (1) | 102 hp / 109 hp / 129 hp | (1) Depending on rotor type | |
LB324 / 334 XL
| BALE SIZE (WIDTH x HEIGHT) | 80 x 70 cm or 80 x 90 cm | PICK-UP WIDTH | 1,970 mm |
| FEEDER | Packer / Packer Cutter (6 knives) / Rotor Cutter (9 or 19 knives) |
NUMBER OF KNOTTERS | 4 |
| DENSITY LEVEL / NUMBER OF CYLINDERS | Standard / 2 | LENGTH OF BALE CHAMBER | 3,340 mm |
| TRACTOR PTO POWER REQUIREMENT (1) | 122 hp / 150 hp | (1) Depending on rotor type | |
For more information
Contact your local Lloyd Ltd branch to learn more about the Case IH LB436 HD Series Large Square Baler range or to book a demo.
