Case Puma Series Tractors

The recently-redesigned Case IH Puma range has 16 models covering 140-260 hp rated engine power and is split into three designed lines:

the compact Puma 140-175 models
the larger Puma 185-240 tractors
the Puma 260 CVXDrive model with Case IH FieldOps™ telematics

RATED POWER	TRANSMISSION	CAPACITY	MAX. PUMP FLOW RATE
140-240 HP	ActiveDrive 6 or PowerDrive or CVXDrive	6,700 cm³	110 – 170 l/min

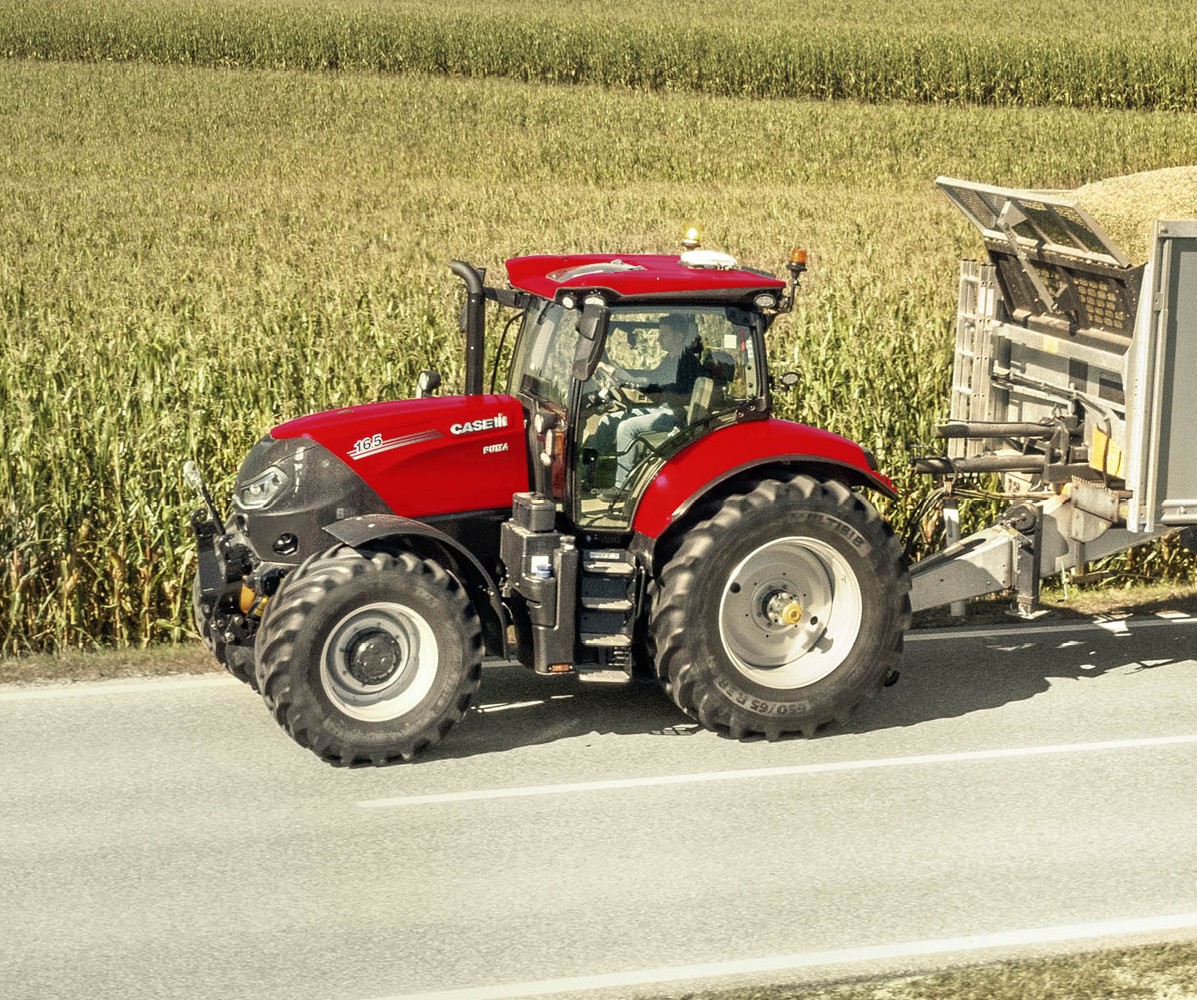

Puma 140-175 Series

Case IH Puma 140-175 tractors benefit from a number of new features designed to enhance productivity and enrich the operating experience.

Click here to read the Puma 140-175 Series brochure.

RATED POWER	TRANSMISSION	CAPACITY	MAX. PUMP FLOW RATE
140 – 180 HP	ActiveDrive 6 or PowerDrive or CVXDrive	6,700 cm³	110 – 160 l/min

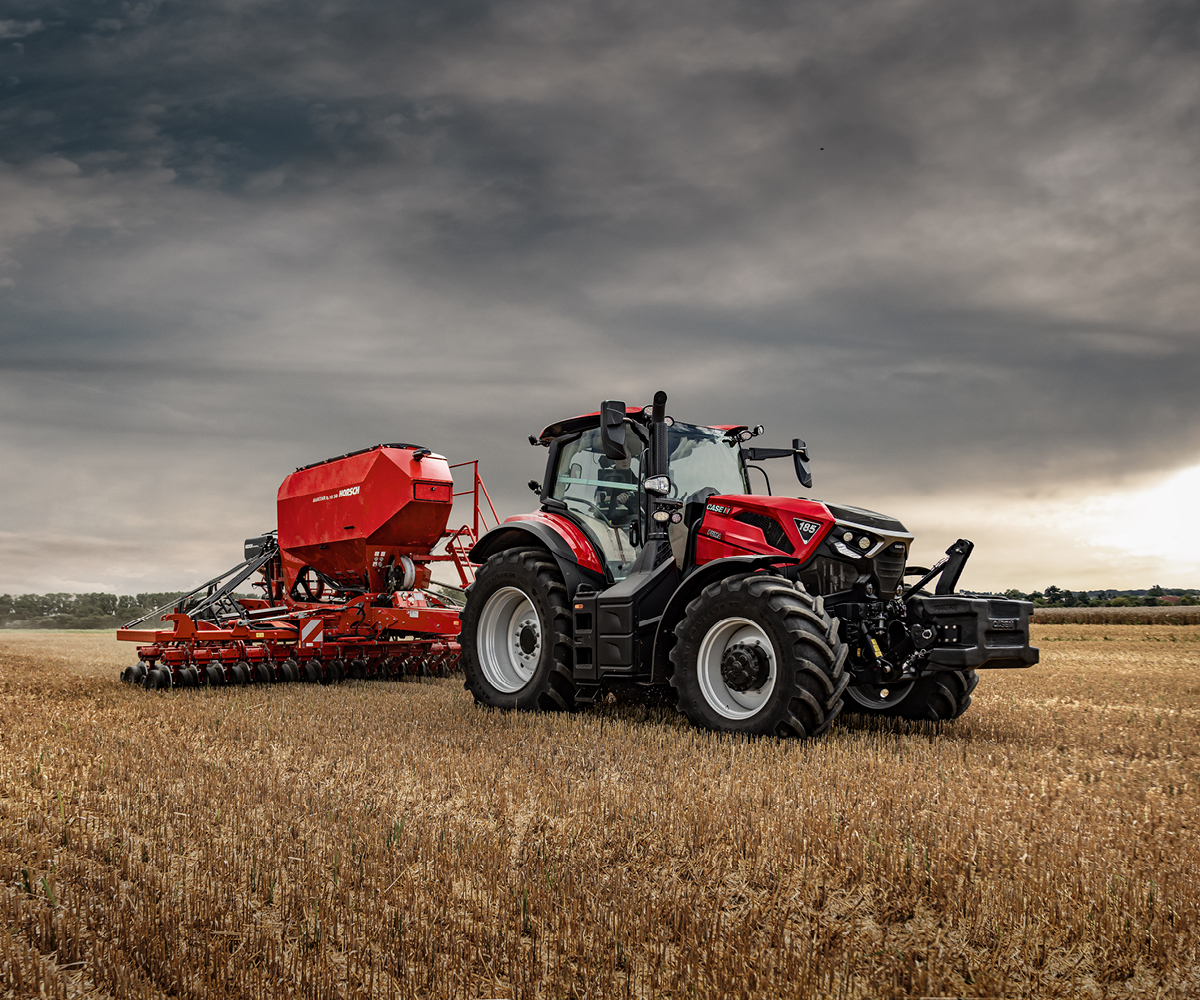

Puma 155-185 Series

Case IH Puma 155-185 Series tractors have been redesigned, offering an updated cab and operator experience, new front axle and cab suspension further improving productivity both in the field and on the road.

Click here to read the Puma 155-185 Series brochure.

RATED POWER	TRANSMISSION	CAPACITY	MAX. PUMP FLOW RATE
155 – 185 HP	ActiveDrive 8 or CVXDrive	6,700 cm³	150 – 170 l/min

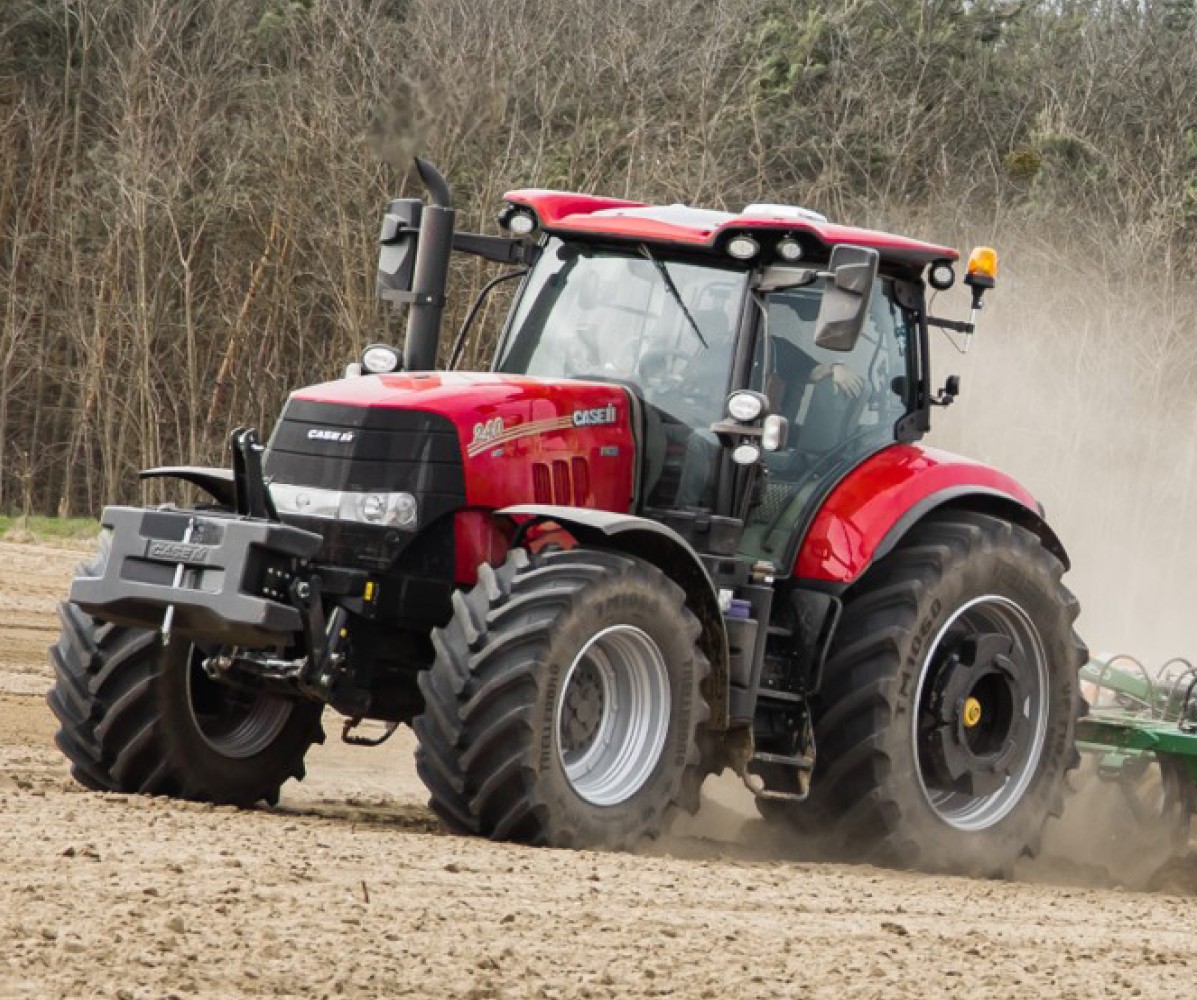

Puma 185-240 Series

A reliable and efficient tractor with a patented FPT engine and exhaust technology, the Puma 185-240 Series comes in four models with PowerDrive transmission.

The Multicontroller armrest and joystick provide intuitive access to key functions ensuring ease of operation, and designed for comfort and efficiency.

Click here to read the Puma 185-240 Series brochure.

RATED POWER	TRANSMISSION	CAPACITY	MAX. PUMP FLOW RATE
185 – 240HP	PowerDrive	6,700 cm³	120 – 170 l/min

Puma 185-260 Series

The Puma 185-260 Series has been designed to offer more power, the latest on- and offboard telematics to enhance productivity, lower total cost of ownership, a quieter and more premium operating experience, and better uptime in the fields.

Click here to read the Puma 185-260 Series brochure.

RATED POWER	TRANSMISSION	CAPACITY	MAX. PUMP FLOW RATE
up to 260 HP (max. power 280 HP)	PowerDrive or CVXDrive	rear 10,463 kg / front 5,812 kg	up to 170 l/min

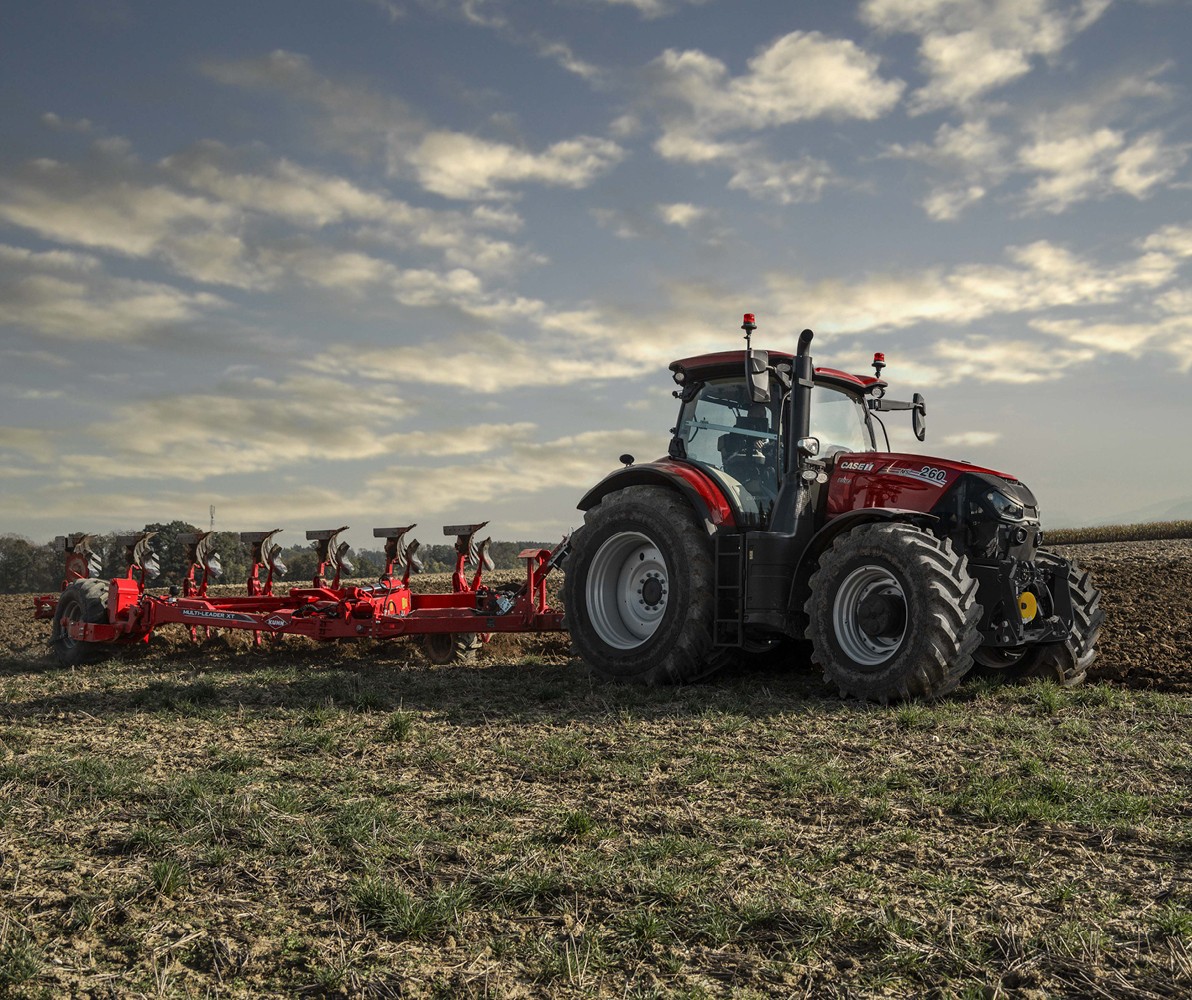

Puma CVX

When you need more – more productivity, more economy, more simplicity, more comfort – unleash your Puma CVX.

CVXDrive is continuously variable transmission (40 kph Eco or 50 kph Eco options)

A highly-productive and versatile tractor that is easy to use and delivers everything you need to handle your daily tasks all year round, with 8 models ranging from 131 to 228 hp.

Click here to read the Puma CVX Series brochure.

MODEL	TRANSMISSION	GVW	STANDARD TYRES	AXLES
PUMA 185 – 200 CVXDRIVE	CVXDrive 40 kph ECO or 50 kph ECO	up to 14,400 kg	Front: 600/65 R28 Rear: 650/65 R42	Suspended front axle with or without brakes Optional suspended HD front axle with or without brakes Standard rear axle
PUMA 220 – 240 CVXDRIVE	CVXDrive 40 kph ECO or 50 kph ECO	up to 14,500 kg or 15,000* kg	Front: 600/65 R28 Rear: 650/65 R42	Suspended front axle with or without brakes Optional suspended HD front axle with or without brakes Standard rear axle or HD rear axle as option
PUMA 260 CVXDRIVE	CVXDrive 40 kph ECO or 50 kph ECO	up to 15,000 kg	Front: 600/70 R30 Rear: 710/70 R42	Suspended HD front axle with or without brakes HD rear axle**

*Only for Puma 220 and 240 CVXDrive with HD axle configuration and engine side frame ** Flange or Bar 98”.
