LiuGong Mini Excavators

As your local LiuGong dealer, available from Lloyd Ltd branches from Central Scotland down to Dumfries, Carlisle and Penrith to Lancashire, Lloyd Ltd can provide the range of mini excavators which cover from 1,750 kg to 8,700 kg operating weight.

Model Engine Operating Weight Net Power Bucket Capacity
9018F Yanmar 3TNV80F-SSLY
EU Stage V
1,800 kg (canopy) 1,900 kg (cab) 13.4 kW 0.045 m3
9027F Yanmar 3TNV80F-SNLY
EU Stage V
Cab
2,750 kg
15.2 kW 0.08 m3
9035E Yanmar 3TNV88F-ESLY
Stage V
3,860 kg / 3,980 kg 17.3 kW 0.11 m3
909ECR Yanmar 4TNV98C
Tier 4F/EU Stage V
8,700 kg 44 kW 0.23 – 0.32 m³



LiuGong 9018F Compact Excavator

  • With high-visibility cabs, protected by ROPS & TOPS
  • Save more with the optional  AUTO-IDLE speed function
  • When space is tight, the neat compact design with short tail swing gets you to work
  • Control is everything: Load-sensing hydraulics deliver precise and smooth operation for excellent grading performance

Operating Weight: 1,800 – 1,900 kg

Rated Power: 13.4 kW

Bucket Capacity: 0.045 m3

Click here to read the LiuGong 9018F Compact Excavator brochure.

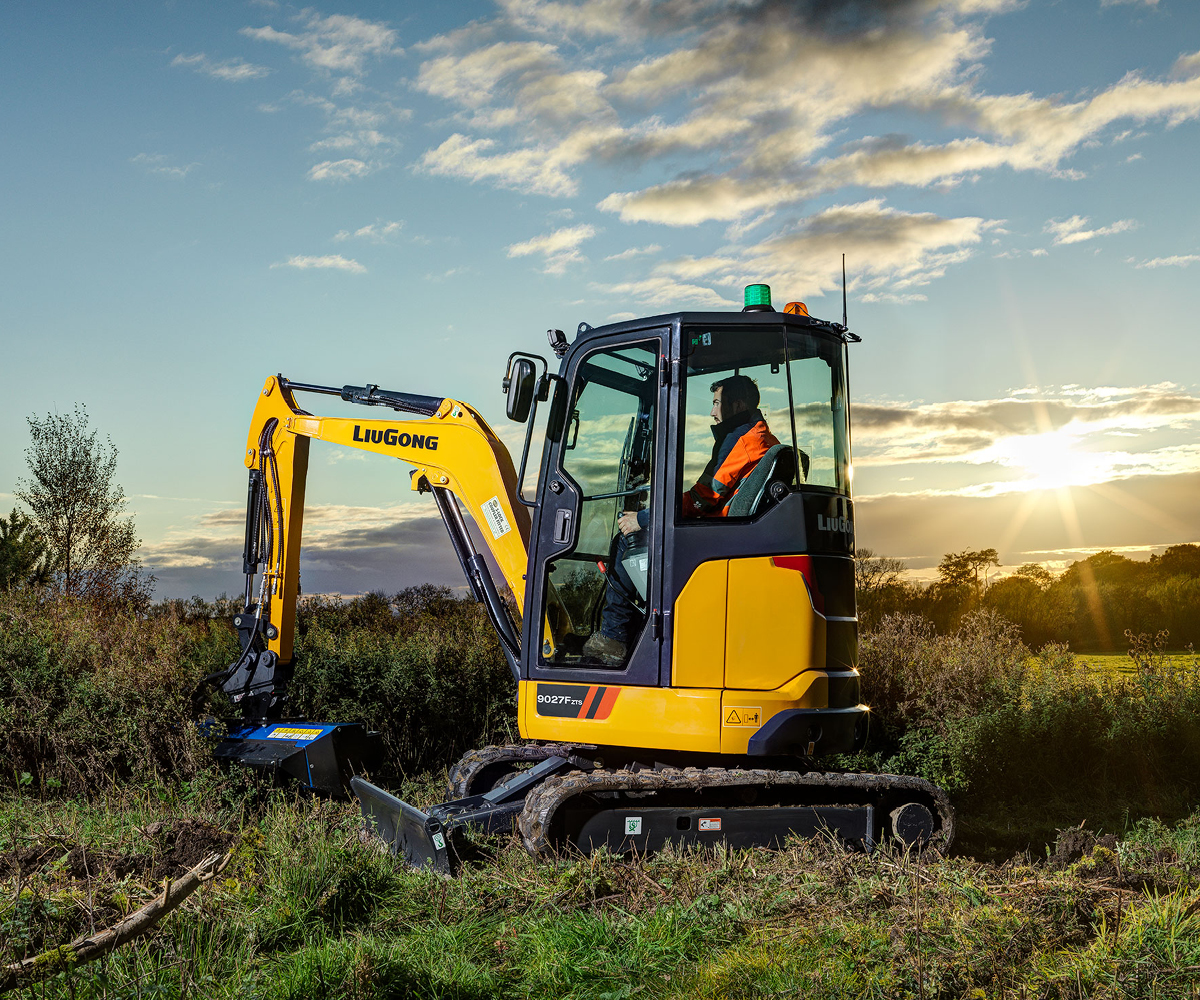

LiuGong 9027F Compact Excavator

  • The new 9027FZTS is a compact machine that delivers on all the big essentials that matter to you.
  • When space is tight, the neat compact design with zero tailswing and boom swing gets you to work.
  • With the upper frame and counter-weight sitting within the width of the tracks, the 9027FZTS can squeeze into the tightest jobsites.
  • The agile offset boom swing control allows the 9027FZTS to deliver even greater versatility allowing you to dig right alongside the tracks. Simple push button selection and trackwheel control enable the boom to swing 74-degrees to the left and 54.5-degrees to the right.  Whatever the space challenge, the 9027FZTS takes it in its stride.
  • With a two-speed travel switch with automatic kick-down on the joystick, it’s never been easier to control your dozing speed.

Operating Weight: 2,750 kg

Rated Power: 15.2 kW

Bucket Capacity: 0.02 – 0.09 m3

Click here to read the LiuGong 9027FZTS Compact Excavator brochure.

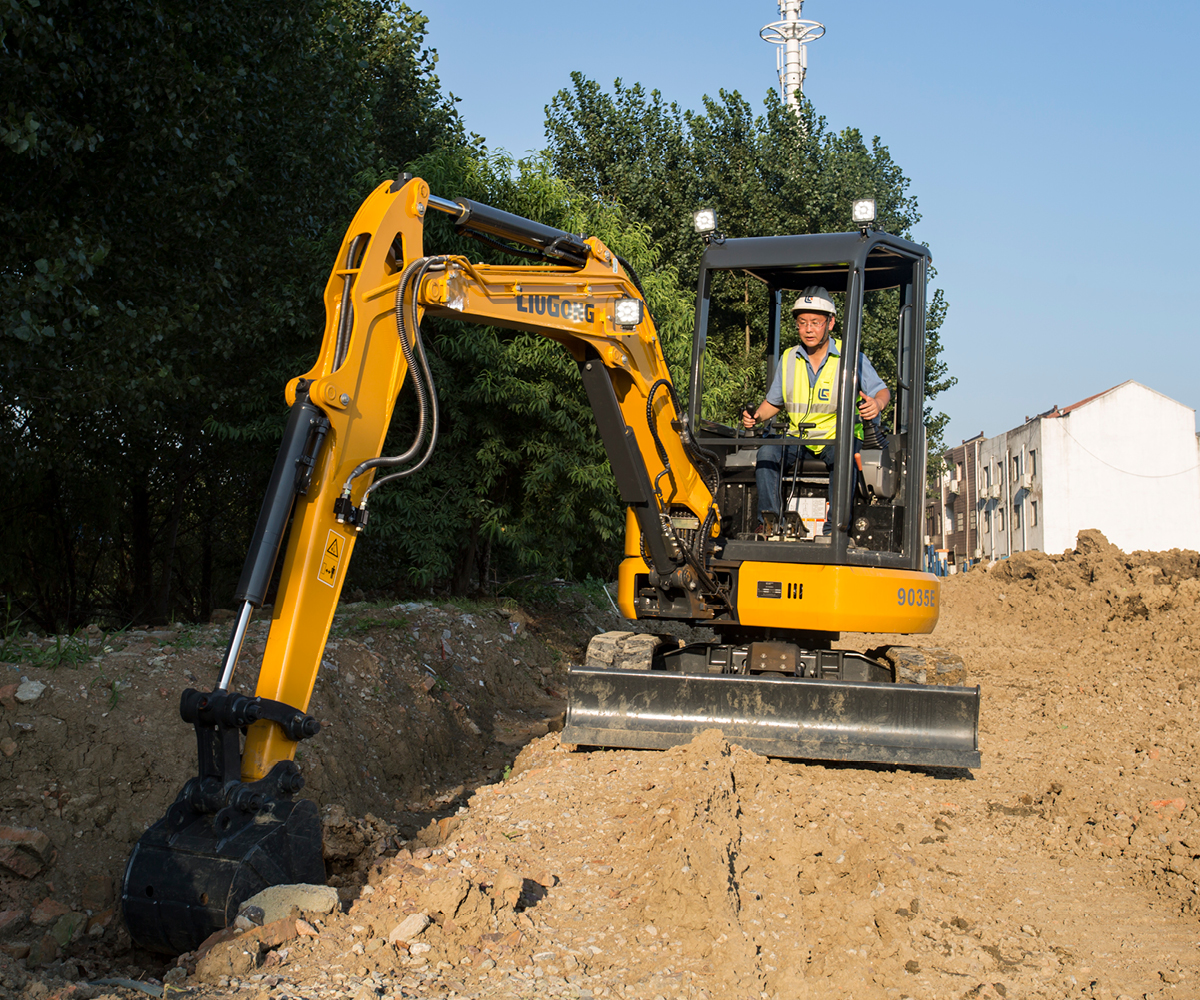

LiuGong 9035E Compact Excavator

  • Zero tail swing
  • Ergonomically designed cab and ergonomic placement of instruments
  • Open ROPS available
  • Hammer/Shear hydraulics and piping

Operating Weight: 3,860 – 3,980 kg

Rated Power: 21.2 kW

Bucket Capacity: 0.045 – 0.18 m3

Click here to read the LiuGong 9035E Tier 4F/Stage V Compact Excavator brochure.

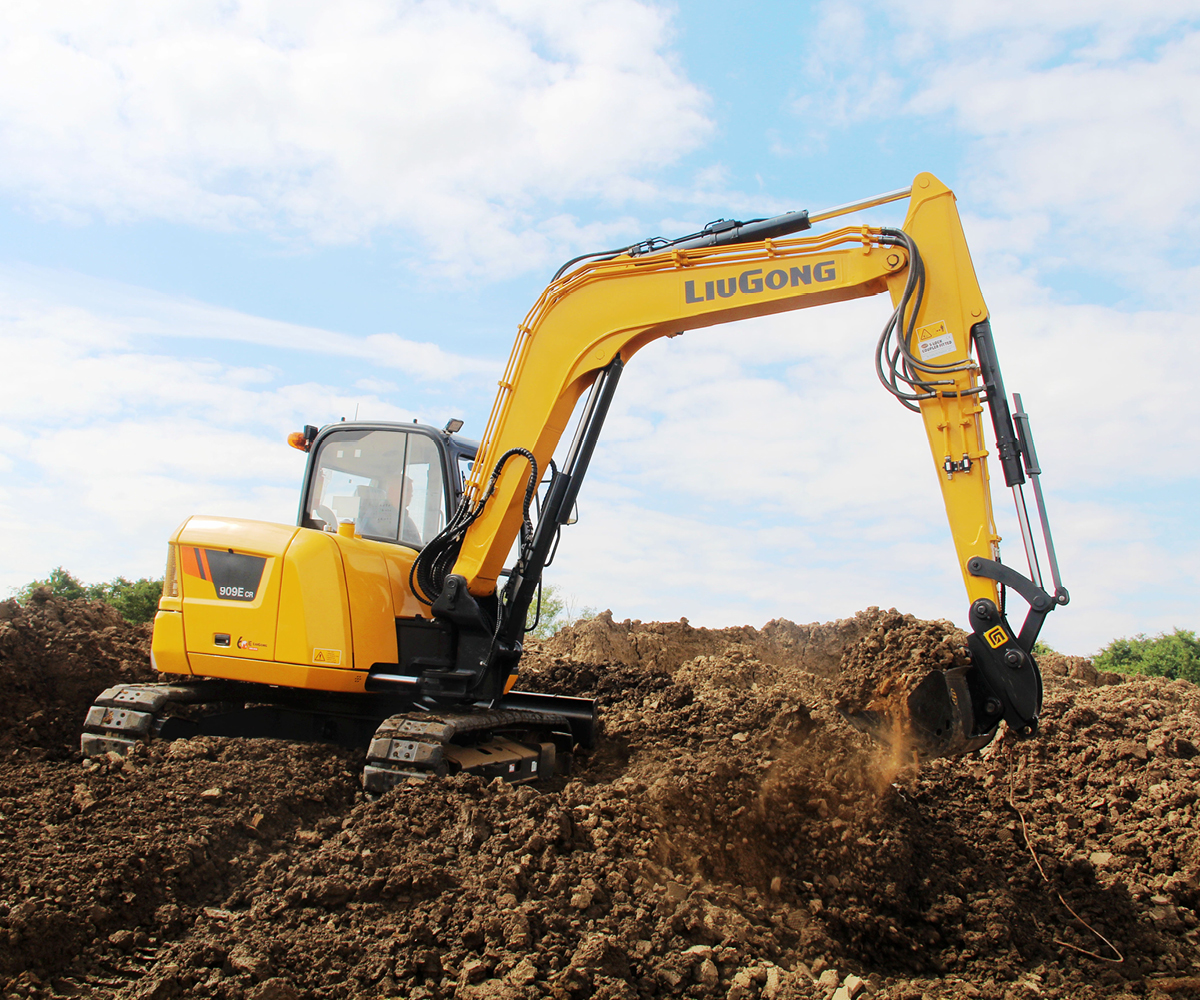

LiuGong 909ECR Excavator

The LiuGong 909ECR Excavator delivers high performance, durability and reliability in short tail swing design to ensure safe and easy operation within a confined space.

The fuel-efficient, Stage V certified Yanmar 4TNV98C engine provides proven and reliable power. The advanced hydraulic system is perfectly matched to the engine and components for fast response and smooth operation. The hydraulic system provides a load sensing and flow sharing capability leading to operational precision, efficient performance and greater controllability.

Click here to read the LiuGong 909ECR Mini Excavator brochure.

For more information

To find out more about the LiuGong range of mini-excavators, contact your local Lloyd Ltd branch or your Construction Sales Specialist.
