ScanStone offers a rank of destoners to suit a variety of size and performance requirements.

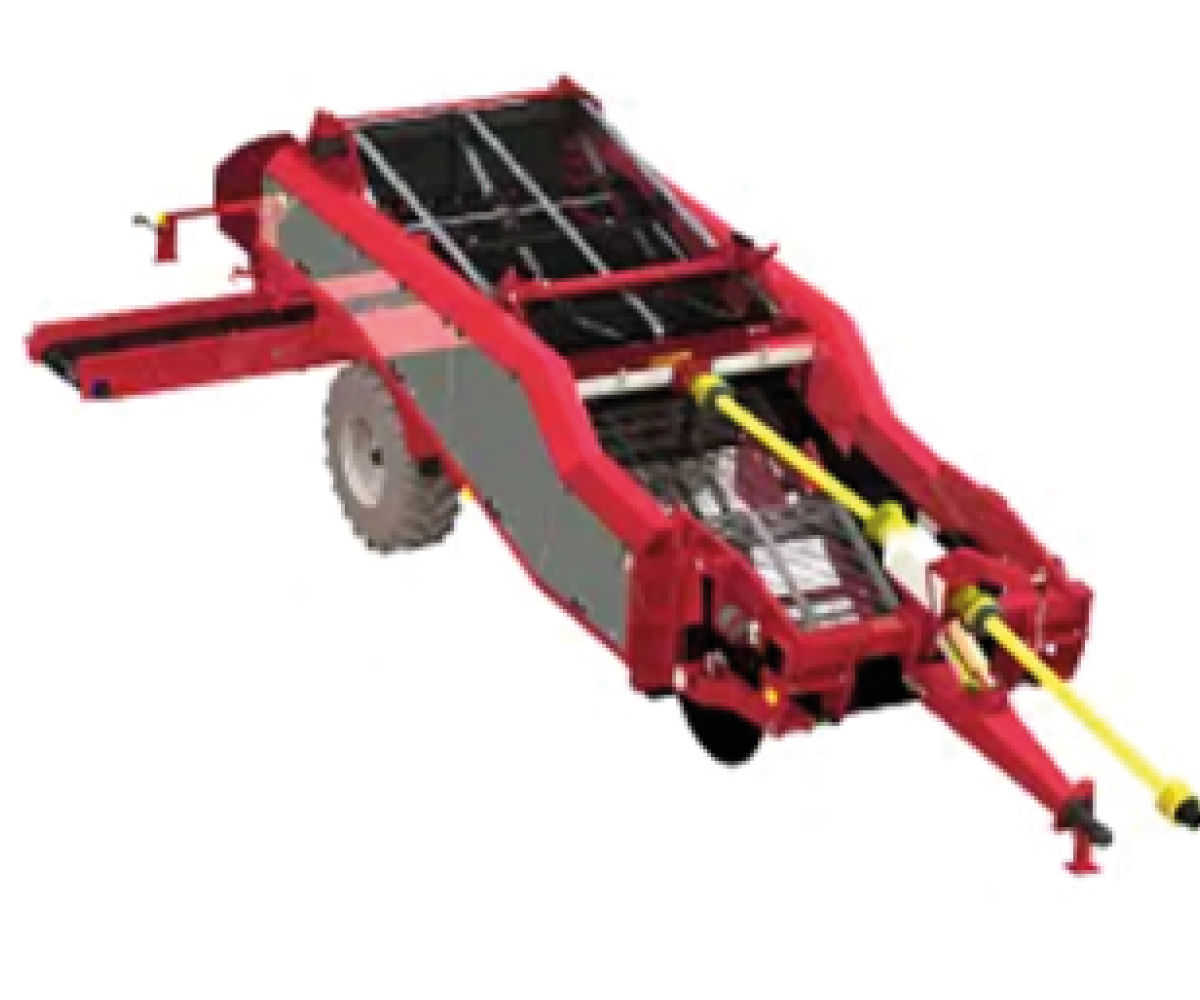

ScanStone 3 Webber
The ScanStone 3 Webber comes with two short webs and one longer rear web as standard. It can be fitted with many different specification options such as a stone box and either 1540mm or 1740mm working width depending on desired bed width. Various web pitches are available to suit clod or wet conditions.
| Horsepower Requirement | 120 hp |
| Length | 7.8 m |
| Weight | 4-5 T |
| Working Width | 1,540 or 1,740 mm |
| Number of Webs | 3 |
| Output | 2-4 kph |
Click here for the ScanStone 3 Webber brochure.

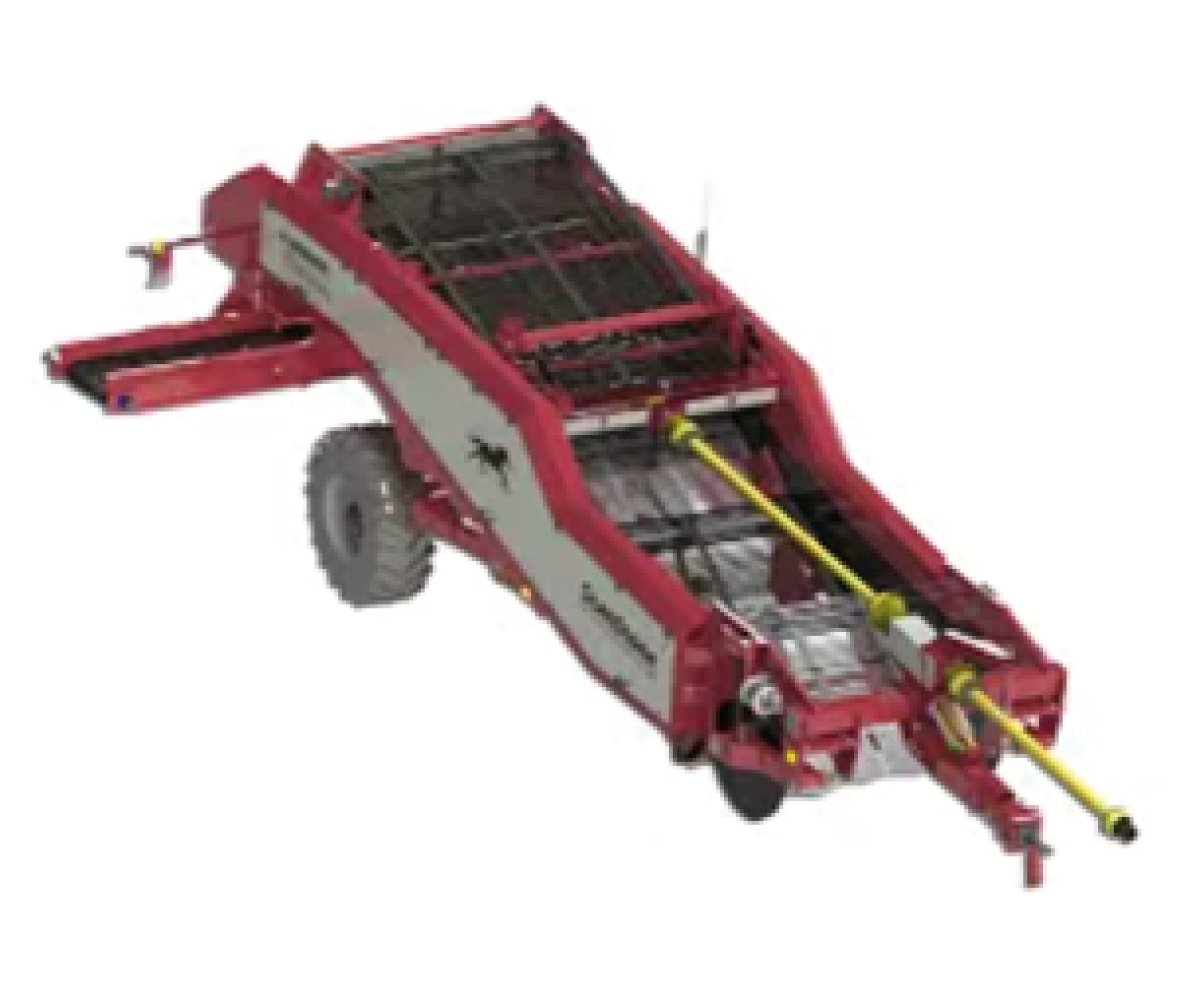

ScanStone 4 Webber
The ScanStone 4 webber is the flagship product of our company, this machine is manoeuvrable, versatile and an all rounder. Horse power requirement when fully loaded is 140 hp and the 4 webber is renowned for being able to come down steep inclines. The machine has award winning open front technology with a hydraulically driven scrubber web and heavy-duty commercial style axles as standard. This machine is all webs with the choice of stars or a rake unit in the stone box.
| Horsepower Requirement | 140 hp |
| Length | 8.1 – 8.8 m |
| Weight | 4.8 T |
| Working Width | 1,540 mm or 1,740 mm |
| Number of Webs | 4 |
| Output | 3 – 5 kph |
Click here for the ScanStone 4 Webber brochure.

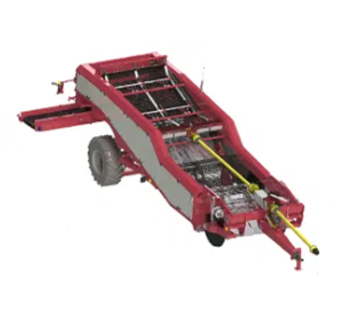

ScanStone 5 Webber S
The ScanStone 5 Webber S is a machine which has webs of consistant length throughout. It offers one more drop than the 4 Webber, giving it increased capacity. The machine is not compatible with a hydraulically driven scrubber web, only a standard mechanical web is in place for scrubbing. This machine has incredibly low running costs and is of the same chassis length as the 4 Webber allowing it good manoeuvrability.
| Horsepower Requirement | 140 hp |
| Length | 8.1 – 8.8 m |
| Weight | 5 – 5.4 T |
| Working Width | 1,540 mm or 1,740 mm |
| Number of Webs | 5 |
| Output | 3 – 5 kph |
Click here for the ScanStone 5 Webber S brochure.

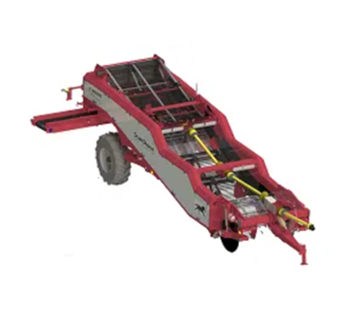

ScanStone 5 Webber L
The ScanStone 5 Webber L is the highest capacity machine in the destoning range. This machine is complete with 4 regular webs and one long rear web. The hydraulically driven scrubber web is also a standard feature on the 5 Webber along with the open front system. Horse power requirement when fully loaded is up to 160 hp. either in Load Sensing or Open Centre hydraulics.
| Horsepower Requirement | 160 hp |
| Length | 9.1 – 9.8 m |
| Weight | 5.6 – 6.6 T |
| Working Width | 1,540 mm or 1,740 mm |
| Number of Webs | 5 |
| Output | 4 – 7 kph |
Click here for the ScanStone 5 Webber L brochure.

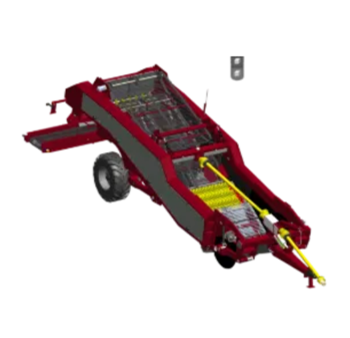

ScanStone TriStar
The ScanStone TriStar is a machine for varying conditions and for varying output. This machine has a front web, 3 rows of fixed stars, a second web, and a rear web.
| Horsepower Requirement | 160 hp |
| Length | 7.7 – 8.4 m |
| Weight | 5.5 – 6 T |
| Working Width | 1,540 mm or 1,740 mm |
| Number of Webs | 3 webs, 3 adjustable stars |
| Output | 4 – 7 kph |

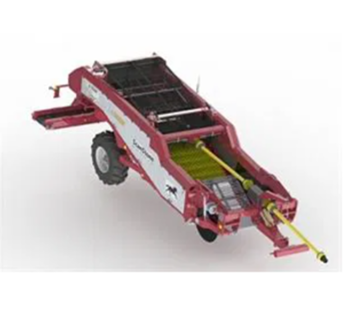

ScanStone EcoStar
The ScanStone EcoStar is comprised of 1 digging web, 6 rows of fixed stars and 1 rear web which sits underneath the driven scrubber web. The EcoStar is a highly reliable machine which has had all bearings and shafts redesigned for maximum user confidence. This machine comes with an open front system and all the available options of the web machines.
| Horsepower Requirement | 160 hp |
| Length | 7.7 – 8.4 m |
| Weight | 5.5 – 6 T |
| Working Width | 1,540 mm or 1,740 mm |
| Number of Webs | 1 web, 6 rows of stars, 1 web |
| Output | 4 – 7 kph |
Click here for the ScanStone EcoStar brochure.

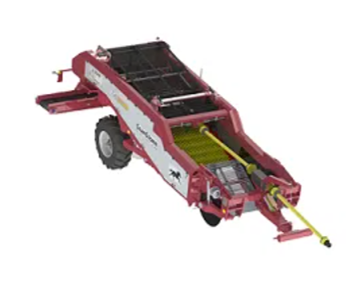

ScanStone VariStar
The ScanStone VariStar is a machine for varying conditions and for varying output. This machine has the same configuration as the EcoStar but the 6 rows of centre stars open and close to vary the gap. This reduces running costs when the stars begin to wear.
| Horsepower Requirement | 160 hp |
| Length | 7.7 – 8.4 m |
| Weight | 5.5 – 6 T |
| Working Width | 1,540 mm or 1,740 mm |
| Number of Webs | 2 webs, 6 + 1 adjustable stars |
| Output | 4 – 7 kph |
Click here for the ScanStone VariStar brochure.
For more information
Contact your local Lloyd Ltd branch to learn more about the ScanStone Destoner range or complete the following form.
